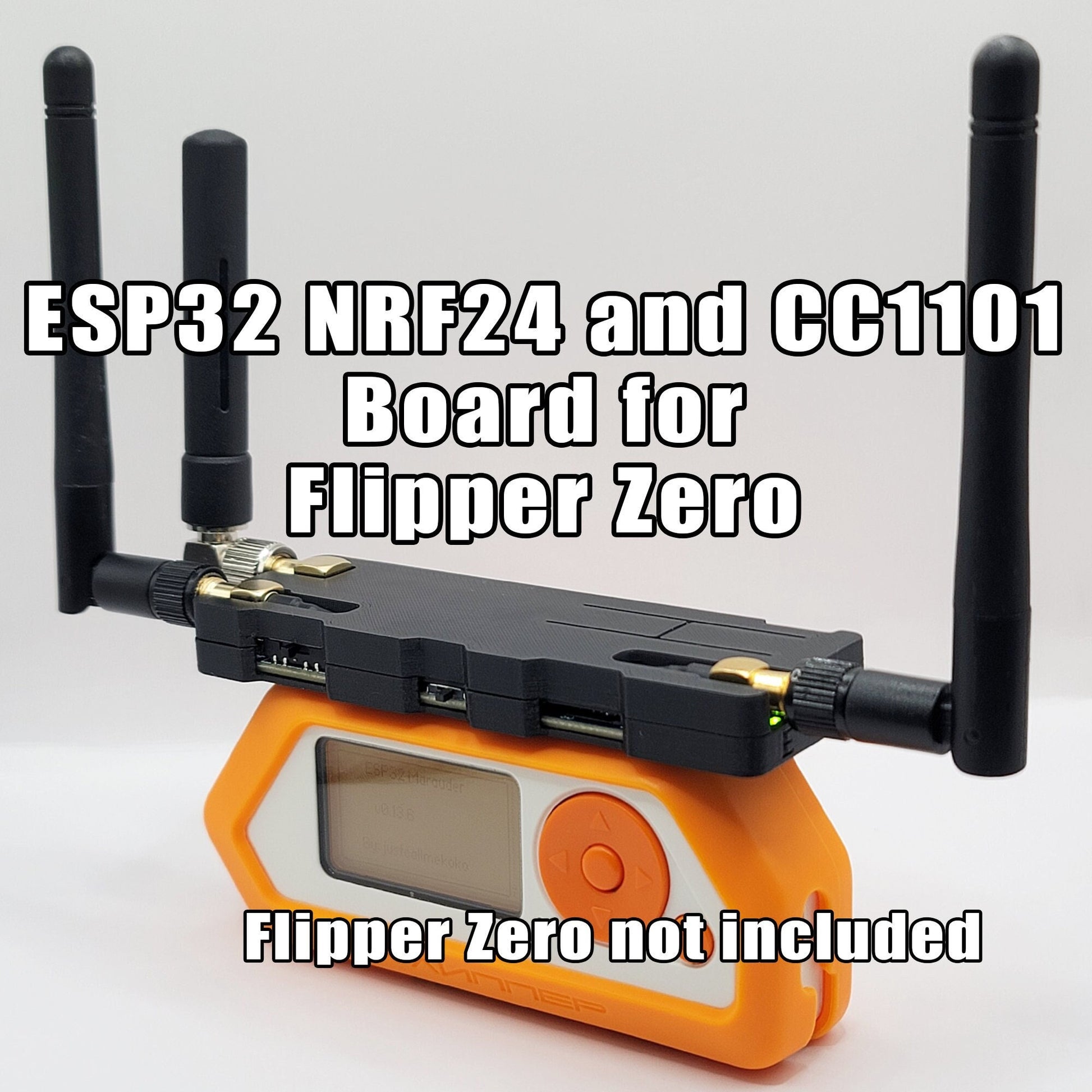

ESP32 NRF24 and CC1101 Board for Flipper Zero with 3D Printed Case and Antennas
ESP32 NRF24 and CC1101 Board for Flipper Zero with 3D Printed Case and Antennas
Regular price
$109.99 USD
Regular price
$149.99 USD
Sale price
$109.99 USD
Unit price
/
per
*Flipper Zero is not included

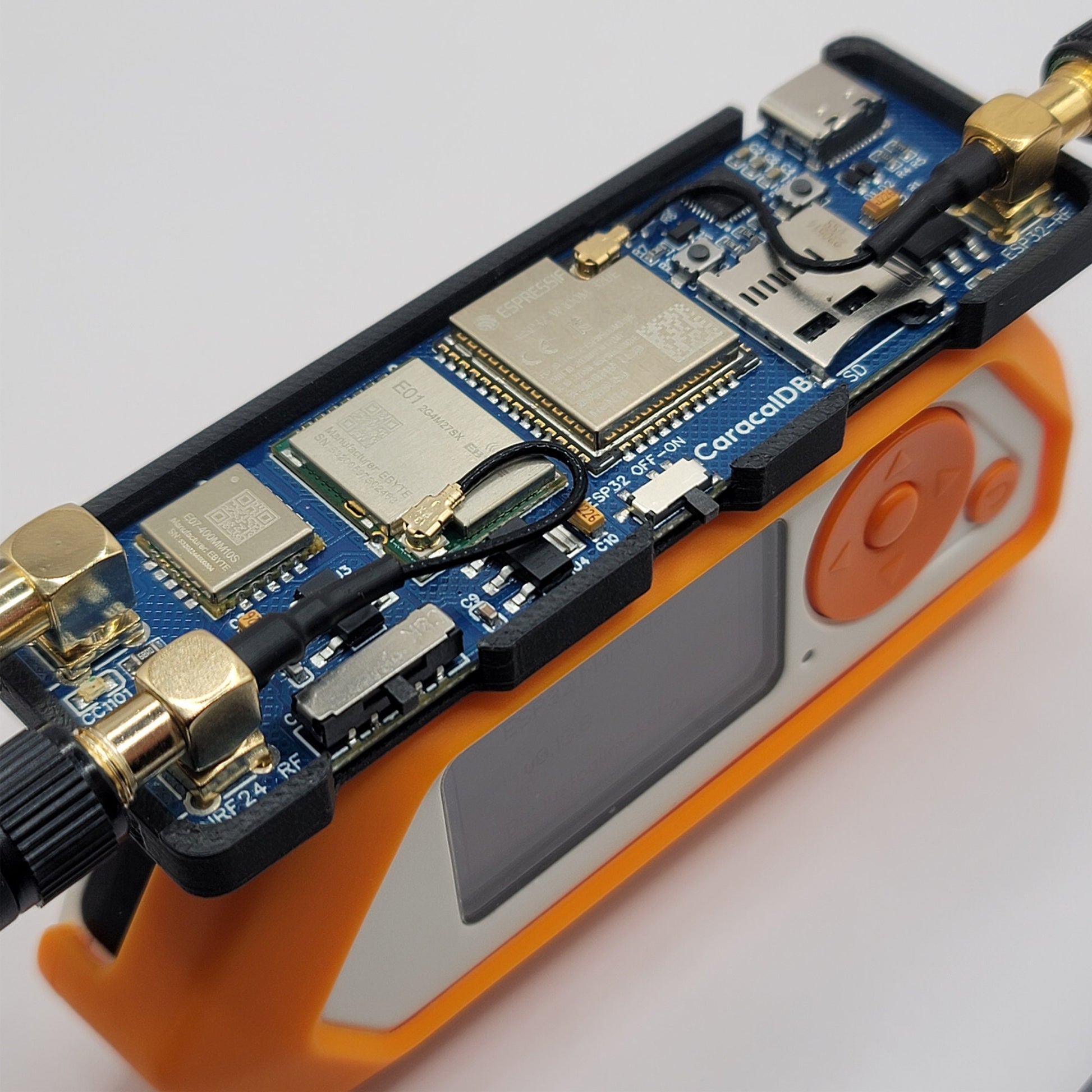

This add-on board for Flipper Zero adds WIFI, Bluetooth, NRF24L01+, and can also extend the range of receiving and transmitting of 433MHz (Sub-GHz) signals.
Main Features:

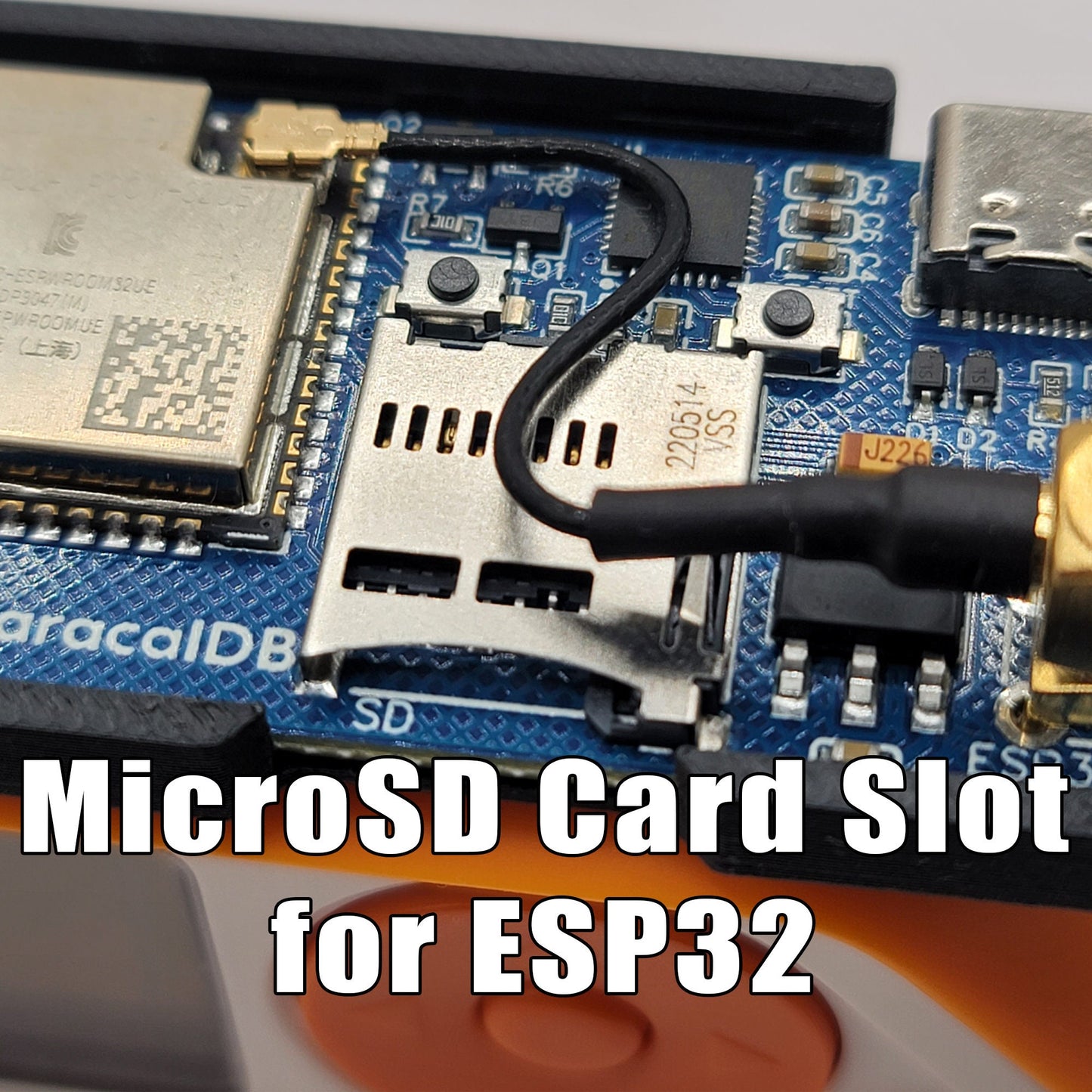

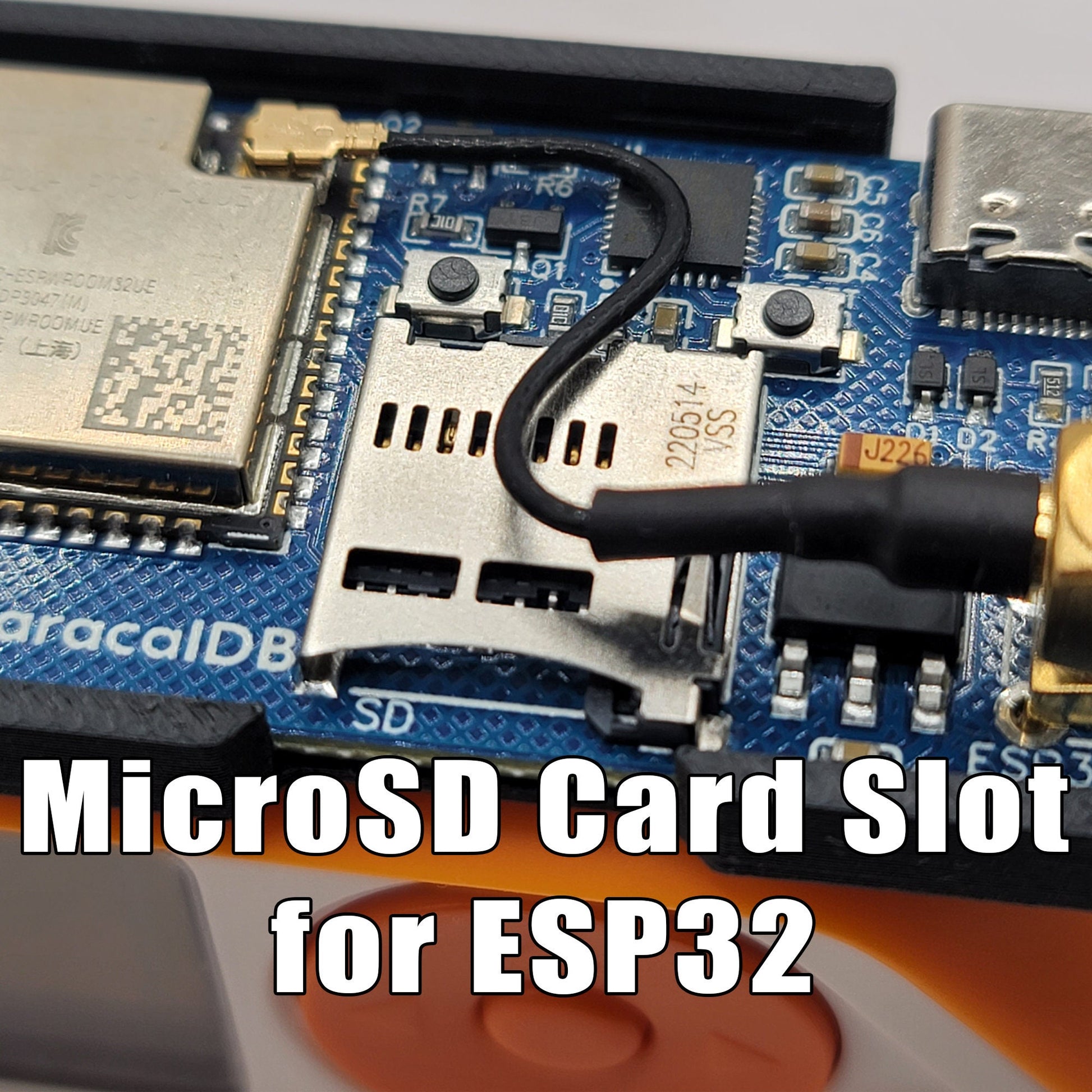

ESP32 - The ESP32 comes pre-flashed with Marauder and can used for WIFI and Bluetooth offensive and defensive tools, and Evil Portal. The MicroSD card slot can be used to save PCAP files and Evil Portal config files (MicroSD card not included).
NRF24L01 - The NRF24L01 can be used for mousejacking and sniffing.
CC1101 - The CC1101 module can be used to significantly extend the range of receiving and transmitting of 433MHz signals (433MHz Antenna included.)

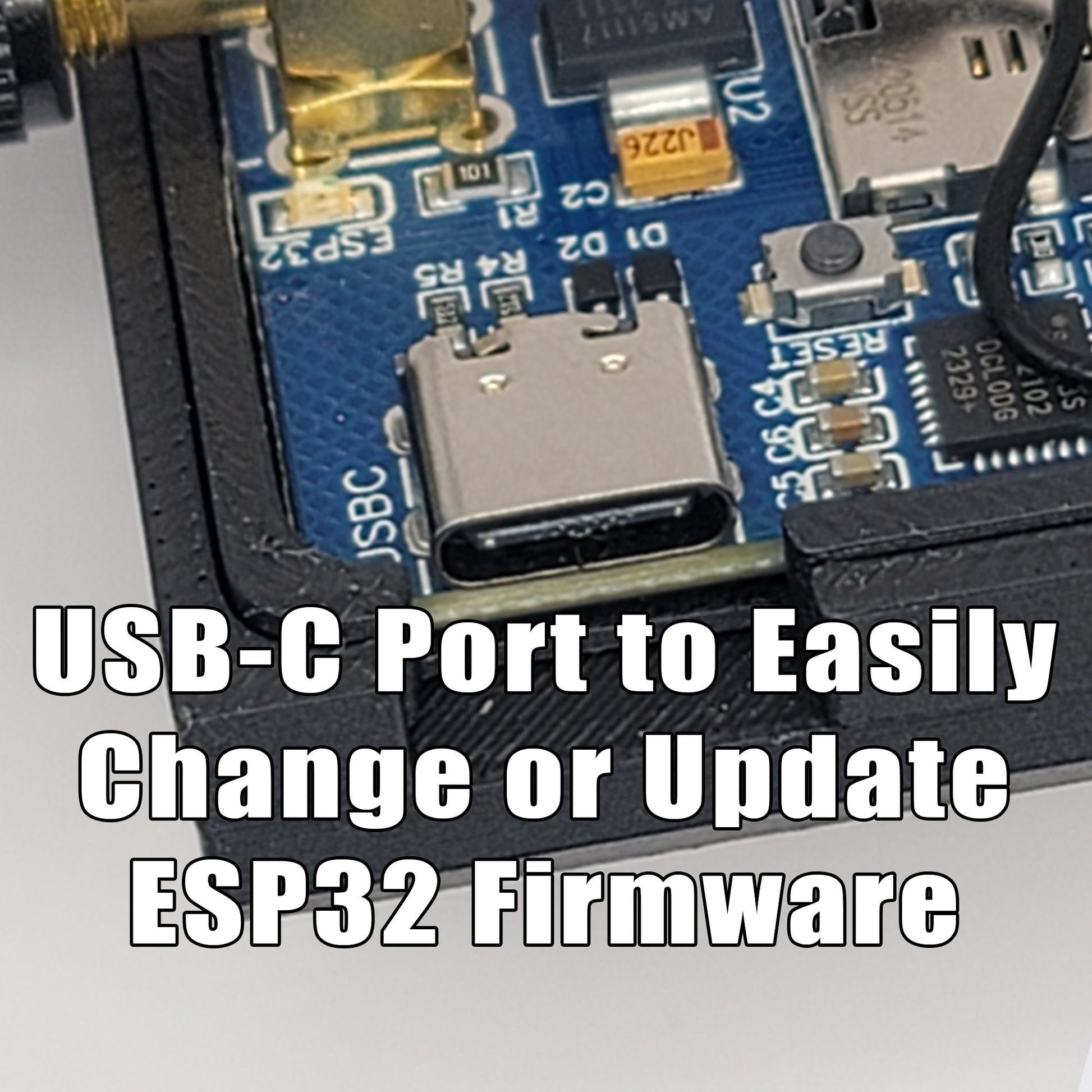

CP2102 - This USB to UART bridge allows the ESP32 to be flashed though USB type-C, making it easy to update or change the firmware of the ESP32 from a PC.

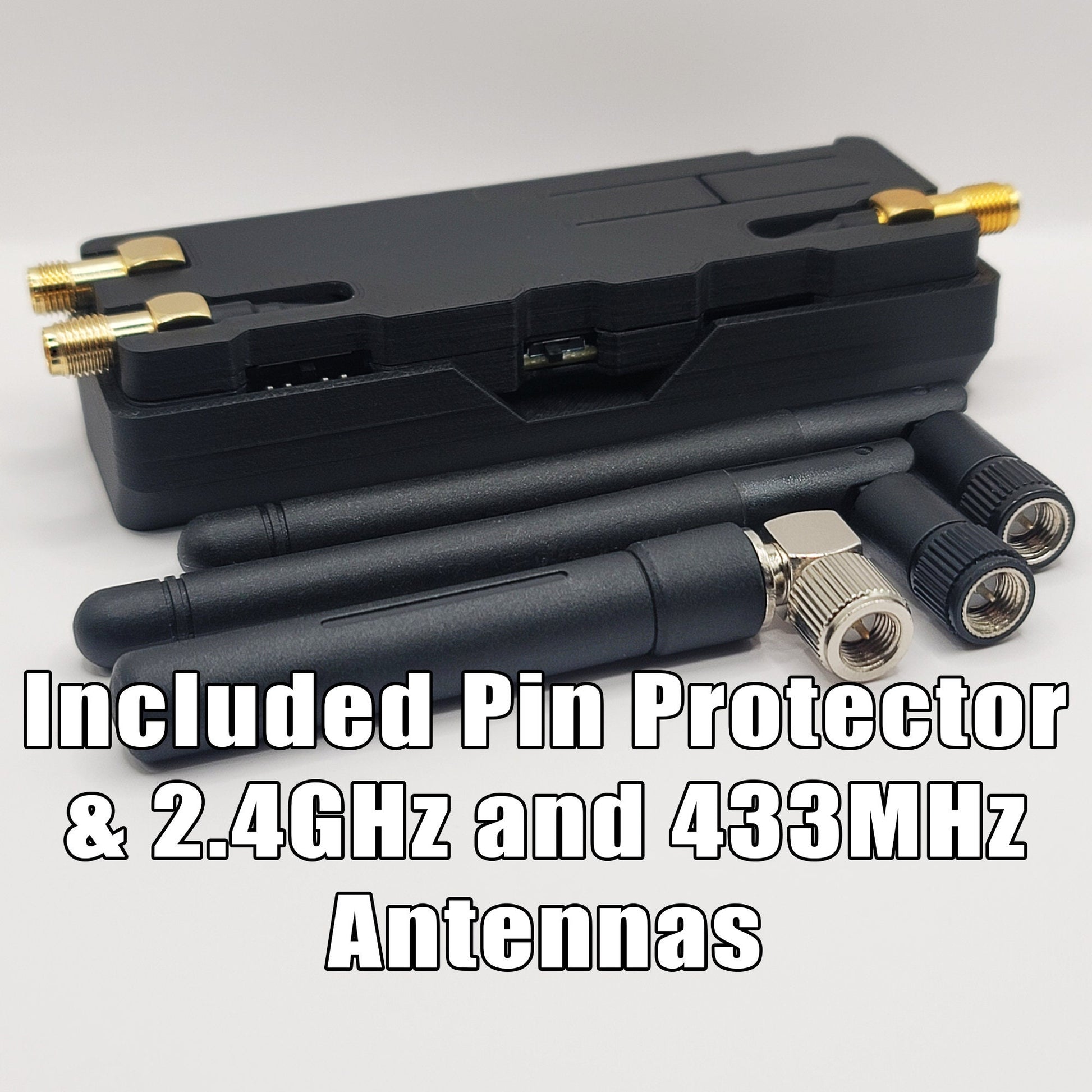

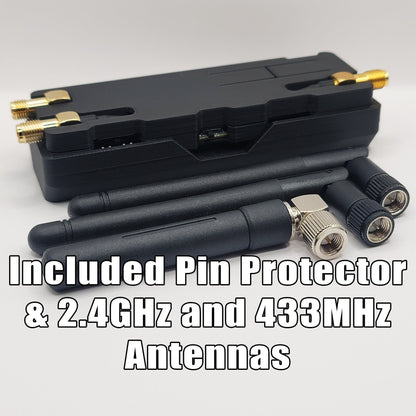

3D Printed Case and Pin Protector - The case adds a layer of protection to the board and is compatible with the Flipper Zero Silicone Case. The case allows access to the power switch, MicroSD slot, ESP32 Boot and Reset buttons, and USB-C port. The Pin Protector protects the GPIO pins from damage during storage.
Included with your order:
1x ESP32 NRF24 and CC1101 Board
1x 3D Printed Case and Pin Protector
2x 2.4GHz 2.5dBi EBYTE Antenna for ESP32 and NRF24
1x 433MHz 2.5dBi EBYTE Antenna for CC1101
Please allow up to 2 days for your order to ship.
*This tool is for educational and research purposes only. The user is responsible for understanding and complying with all applicable laws and regulations.
